28 Stations HRC58 - 62 Corrugated Roll Forming Machine Durable Reliable
Technical Data
1. Steel Sheet Thickness: 0.75-1.2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 8-12m/min
7. Roller Groups: 28 stations
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: 45#steel with quenching treatment
11. Main motor power: 18.5 Kw
12. Hydraulic power: 7.5Kw
Main Components
| S.N | Equipment name | Quantity |
| 1. | 5T passive un-coiler | 1 set |
| 2. | Feeding and leveling device | 1 set |
| 3. | Main roll forming machine | 1 set |
| 4. | Hydraulic cutting | 1 set |
| 5. | PLC Control system (including control box) | 1 set |
| 6. | Out tables | 2 sets
|
Advantage of roll forming machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

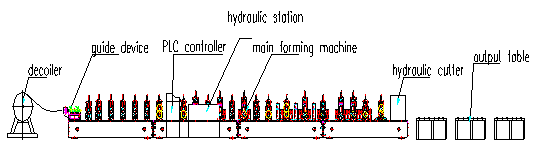

Working Flow of production line
Decoiler----Feeding---Roll forming---Cutting---Run out tables

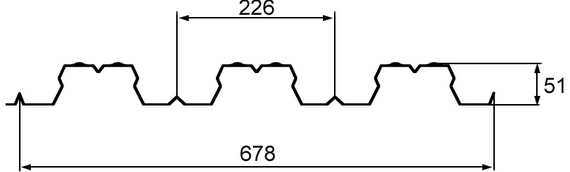

Profile drawing of product
Company Introduction
Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise integrating production, sales and services. We are mainly engaged in providing machineries and equipment. Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 50 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.
Customer Visiting

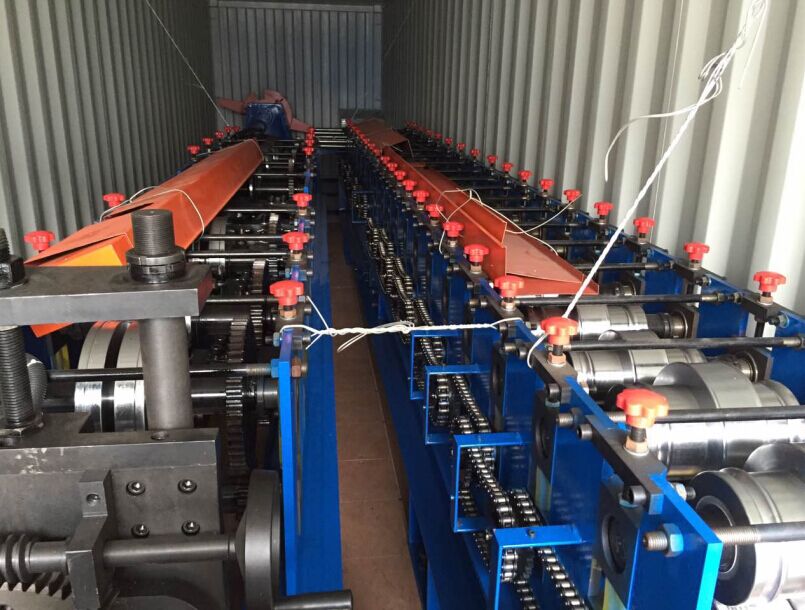

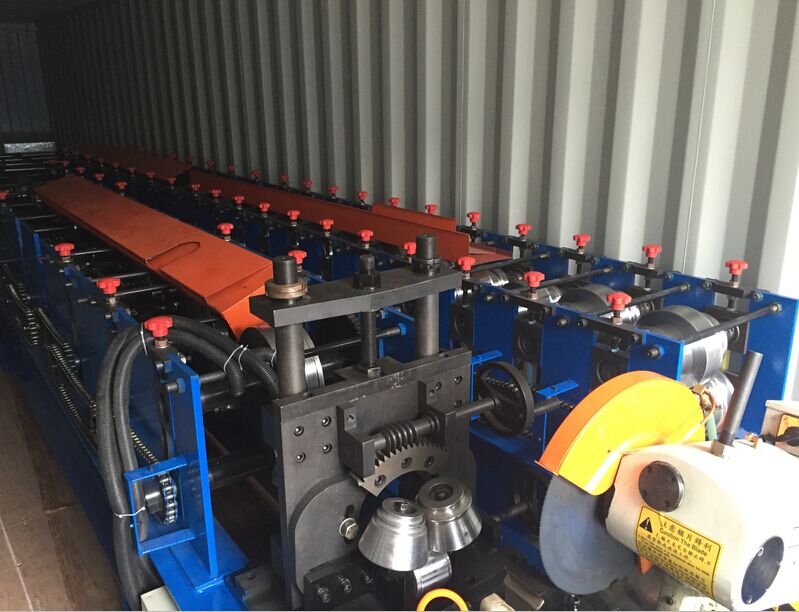

Loading Pics
