30 Meters/Min Working Speed Width Adjustable C Channel Section Roll Forming Machine
Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machineable size range as follow: Width:0-300mm, Height: 50-100mm, Thickness:1.5-3mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel.
Technical data
| | Items | Specifications |
| Material of coil | Material Thickness | 0.3-1.2mm galvanized steel |
| De-coiler | Weight | 3 ton passive decoiler |
| Forming system | Rolling Speed | 0-30 m/min |
| | embossing | 1 set of rolls |
| | Roller Stations | About 15 stations forming |
| | Roller Material | Cr40 Steel with quenching |
| | Shaft Material | 45# Steel Diameter 75mm shaft |
| | Maim Motor Power | 5.5 kw |
| | Hydraulic cutting Power | 4 kw |
| Cutting system | Material Of Cutting | CR12 with quench treatment |
| | Hardness | HRC58-62 |
| | Tolerance | +-1.5mm |
| | Cutting blade | 1 set of cutting blade |
| Electrical control system | Electric Source | 380, 50HZ,3 phases |
| | Control System | PLC Delta |
| | Weight | About 4 tons |
| | Way Of Drive | 1 inch single chain |
| | Size of machine | Length 7500mm* Width 600mm* Height 800m |
Working Flow:
Decoiler—feedingwithguide—Rollforming—Cutting---Products collecting
Profile Drawing:
Machine List:
| Machine list | 3 tons hydraulic de-coiler | 1 set |
| | Main roll forming machine with logo | 1 set |
| | PLC Control box | 1 unit |
| | Hydraulic cutting device | 1 unit |
| | Hydraulic punching device | 1 unit |
| | 7 meters Simple auto stacker | 1 unit |
Machine Pictures:

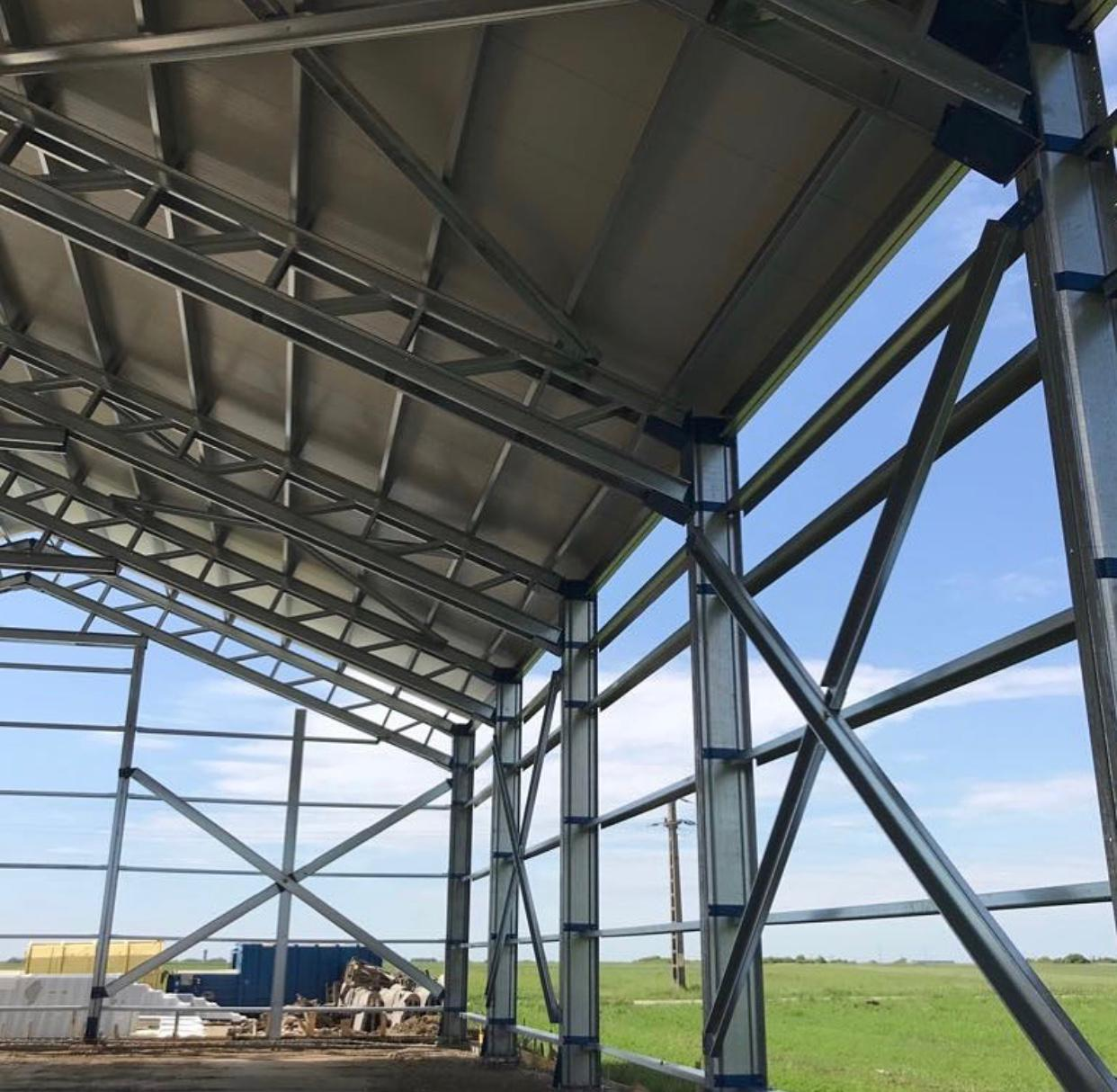

Application:
Notes:
1. The delivery term for the above equipment is FOB SHANGHAI
2. The whole producing plant has the CE certificate approved
3. We offer a warranty period of 1year for all of our machines.
4. Our after-sales services will include factory process designing, equipment Installation coaching, test running the machines, and training of your operation personnel.
