6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : USD25000-USD35000 Per set

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Type : Stud Track Roll Forming Machine

Width : 40mm-150mm

Thickness : 0.4mm-1.2mm

Motor Power : 7.5KW

Contact Now

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine



This machine is for multiple sizes, 6 sizes in one machine, width automatically adjustable.



Technical data



  Items Specifications
Material of coil Material Thickness 0.3-1.2mm galvanized steel
De-coiler Weight 3 ton passive decoiler
Forming system Rolling Speed 10 m/min
  embossing 1 set of rolls
  Roller Stations About 13 stations forming
  Roller Material Cr40 Steel with quenching
  Shaft Material

45# Steel Diameter 75mm shaft



  Maim Motor Power 5.5 kw
  Hydraulic cutting Power 4 kw

Cutting

system

Material Of Cutting CR12 with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Cutting blade 1 set of cutting blade
Electrical control system Electric Source 380, 50HZ,3 phases
  Control System PLC Delta
  Weight About 4 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 7500mm* Width 600mm* Height 800m



Working Flow:



Decoiler—feedingwithguide—Rollforming—punching&Cutting—Products collecting

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine







Machine List:



Machine list
3 tons hydraulic de-coiler
1 set

Main roll forming machine with logo
1 set

PLC Control box
1 unit

Hydraulic cutting device
1 unit

Hydraulic punching device
1 unit

6 meters Simple auto stacker
1 unit

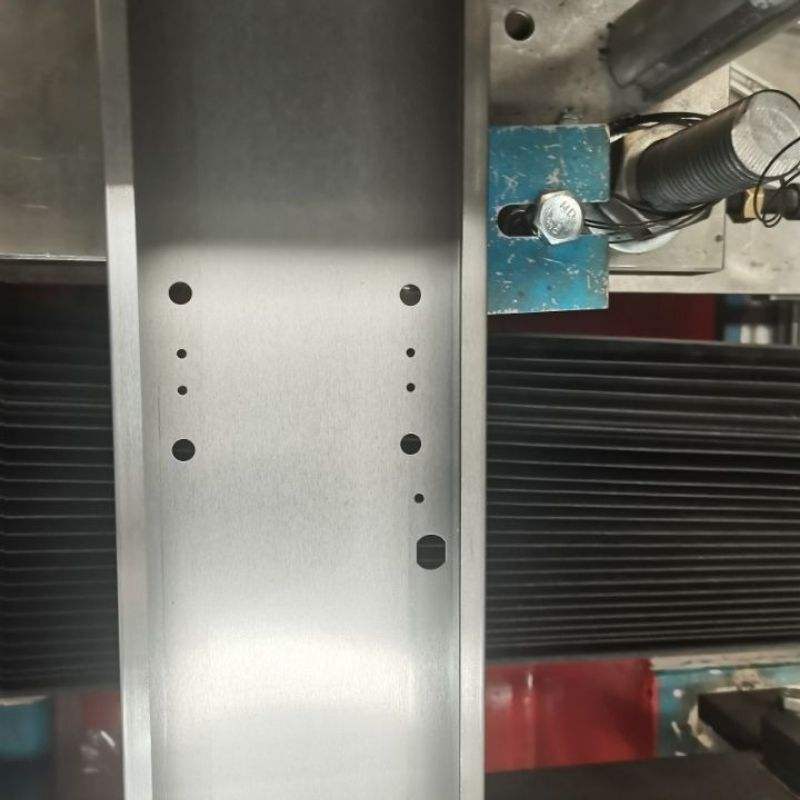

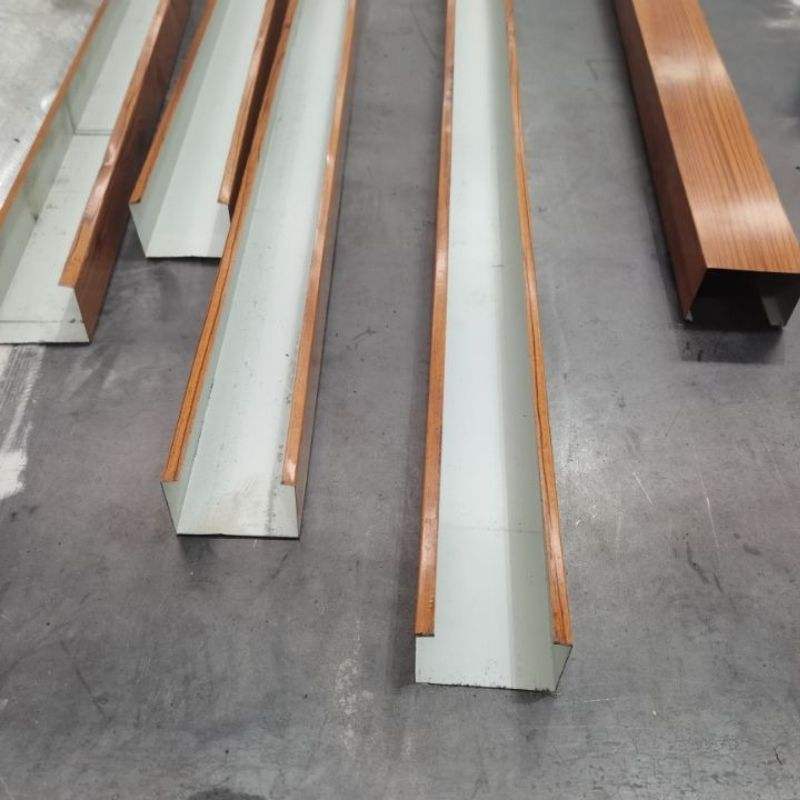

Samples:



6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

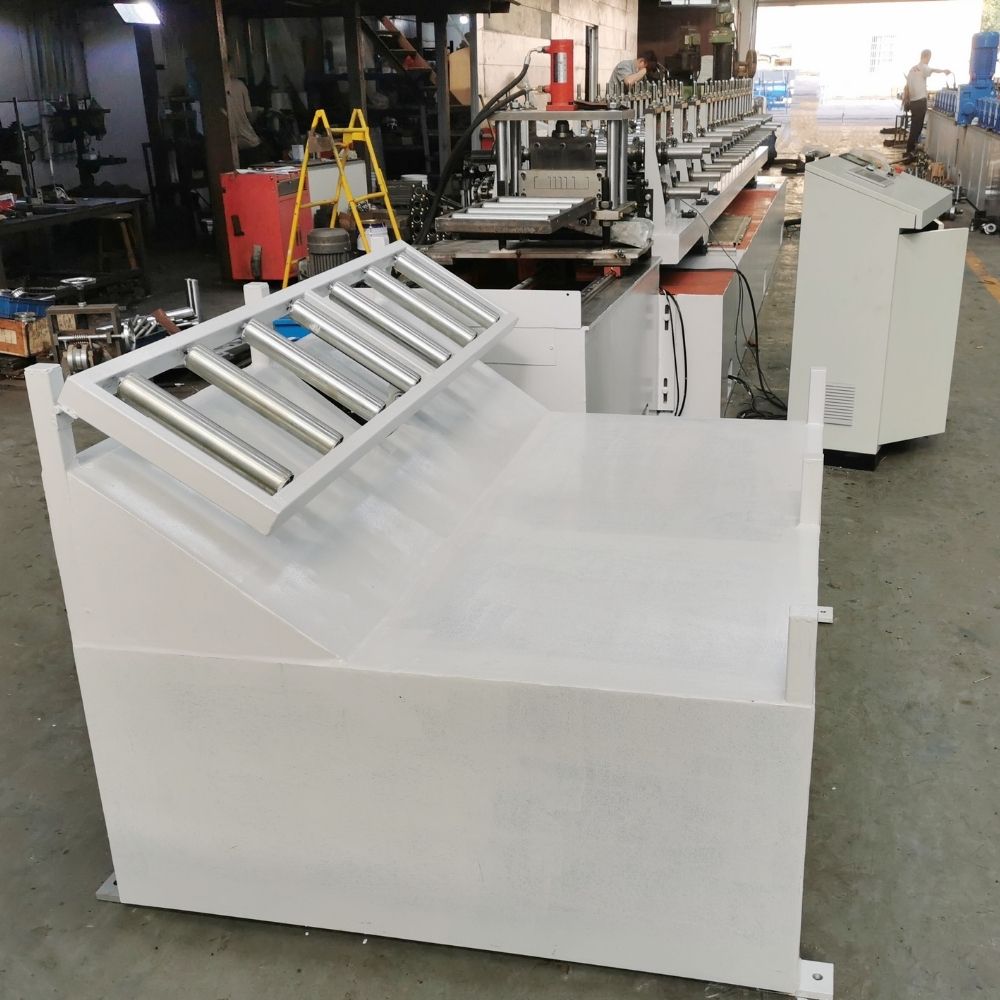

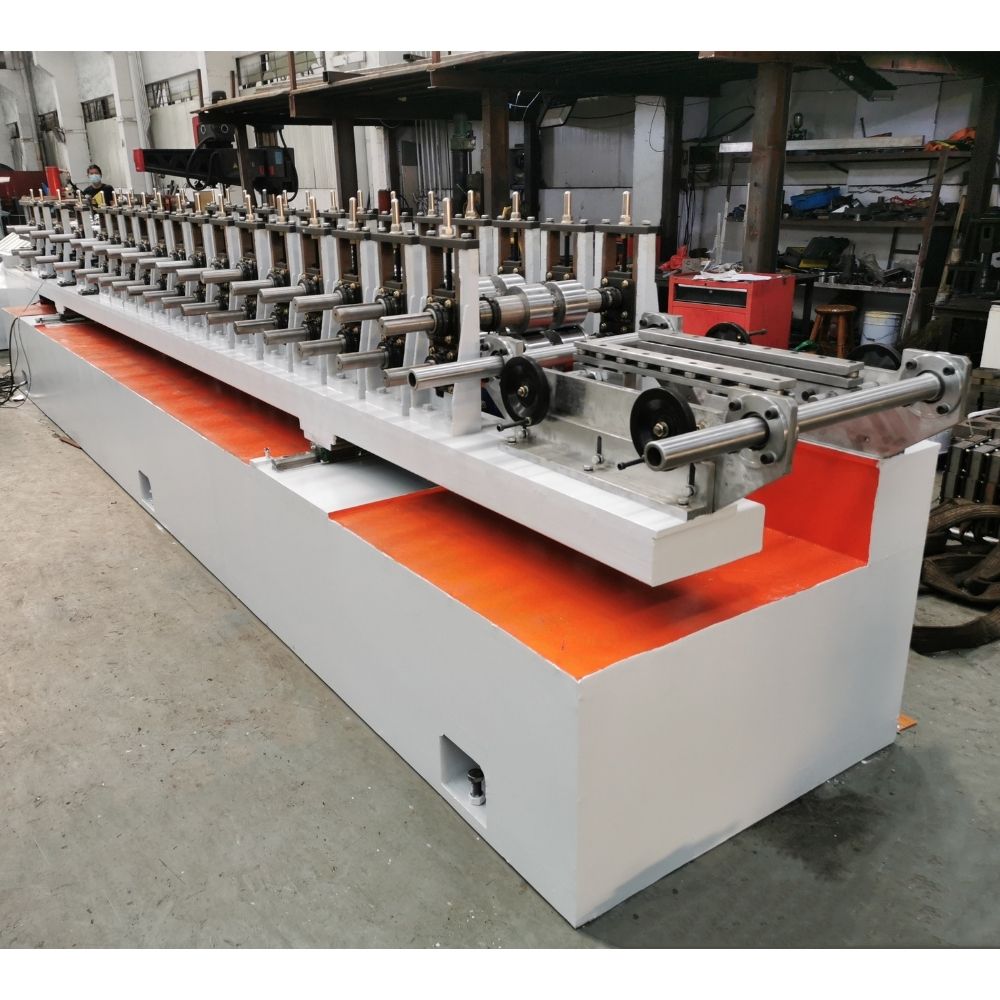

Machine Pictures:



6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

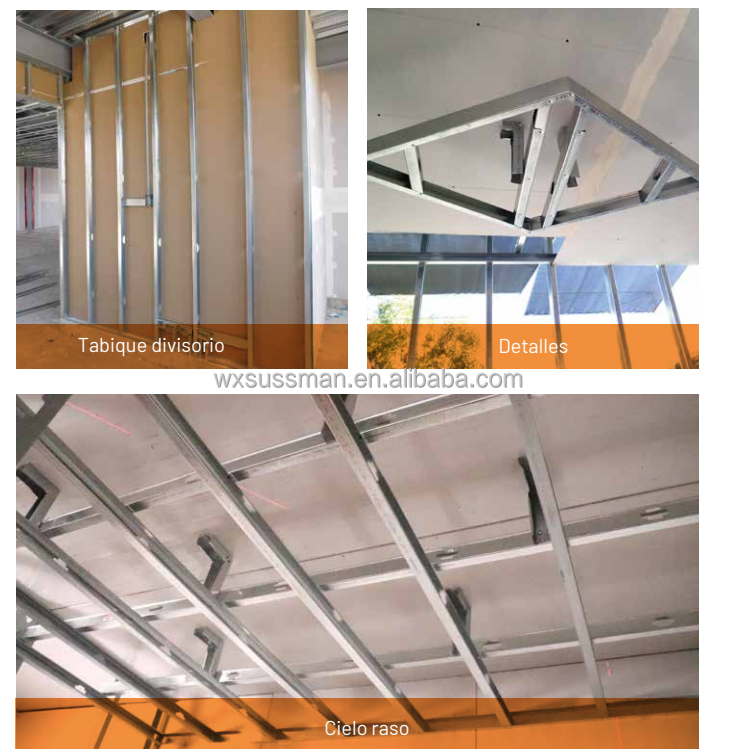

Application:

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

6 In 1 Width Automatic Adjustable C U Stud Track Drywall Roll Forming Machine

C U stud track profile is popular in South America, especially Peru, Chile, raw material could be Galvanized steel, high-tensile steel, the material can do 0.4mm to 1.2mm, width from 40mm to 200mm, change the width automatically by motor and PLC



We also have fully automatic light steel frame machine with vertex software, can do the house frame, like roof, wall, floor, windows, truss,etc.



Also we can design the machine as your requirement or drawings.
