0.4-0.8mm Thickness Round Rain Downspout Roll Forming Machine/ Drain Pipe Metal Round Downspout Roll Forming Machine

Name: 0408mm Thickness Round Rain Downspout Roll Forming Machine Drain Pipe Metal Round Downspout Roll Forming Machine
Brand: Sussman
Price: 1 USD

Buy cheap 0.4-0.8mm Thickness Round Rain Downspout Roll Forming Machine/ Drain Pipe Metal Round Downspout Roll Forming Machine product

Brand Name : Sussman

Model Number : SM-RP

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : Standard packing

Main motor power : 7.5kw servo motor

Material thickness : 0.4-0.8mm color coated steel , aluminum,galvanized steel

Roller material : #45 forged steel, surface coated with chrome

Shaft material : #45 steel with heat treatment

Control system : PLC(imported Brand)

Voltage : 380V 50Hz 3Phases Or As Your Requirment

Contact Now

0.3-0.8mm Thickness 300mm 400mm Width Square Water Down Pipe Roll Forming Machine

Water Downspout machine technical parameter

Use		ROOF&Others
Production Capacity		5-10m/min
Voltage		220 V 380 V 415 V 440 V Other
Weight		8000 KGS
Warranty		one year
Key Selling Points		Fastest speed Remote Production Control Best solution Best components Easy installation Easy operation Mini space Full lifetime service
Rolling thinckness		0.3-0.8 mm PPGI,Aluminum
Feeding width		300 mm 400mm 450mm Other
Machinery Test Report		Provided
Video outgoing-inspection		Provided
Core Components		Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Main Components

Commodity & Description	Quantity
5Tons manual uncoiler	1 set
feed and guiding device	1 set
Main roll forming machine	1 set
Straighten device	1 set
Hydraulic cutting device	1 set
Output table	1 set
Hydraulic system	1 set
Controlling system	1 set
Elbow machine	1 set
Seaming machine	1 set

Machine Components

The Whole downpipe roll forming line comprised of 3T manual uncoiler, main drive, infeed guiding, roll forming machine, straighten device, cutting equipment, hydraulic system, electrical controlling system, out put table. Elbow and seaming machine

Uncoiling – Infeed Guiding– Roll forming – straighten – Hydraulic cutting – Run-out table-elbow-seaming

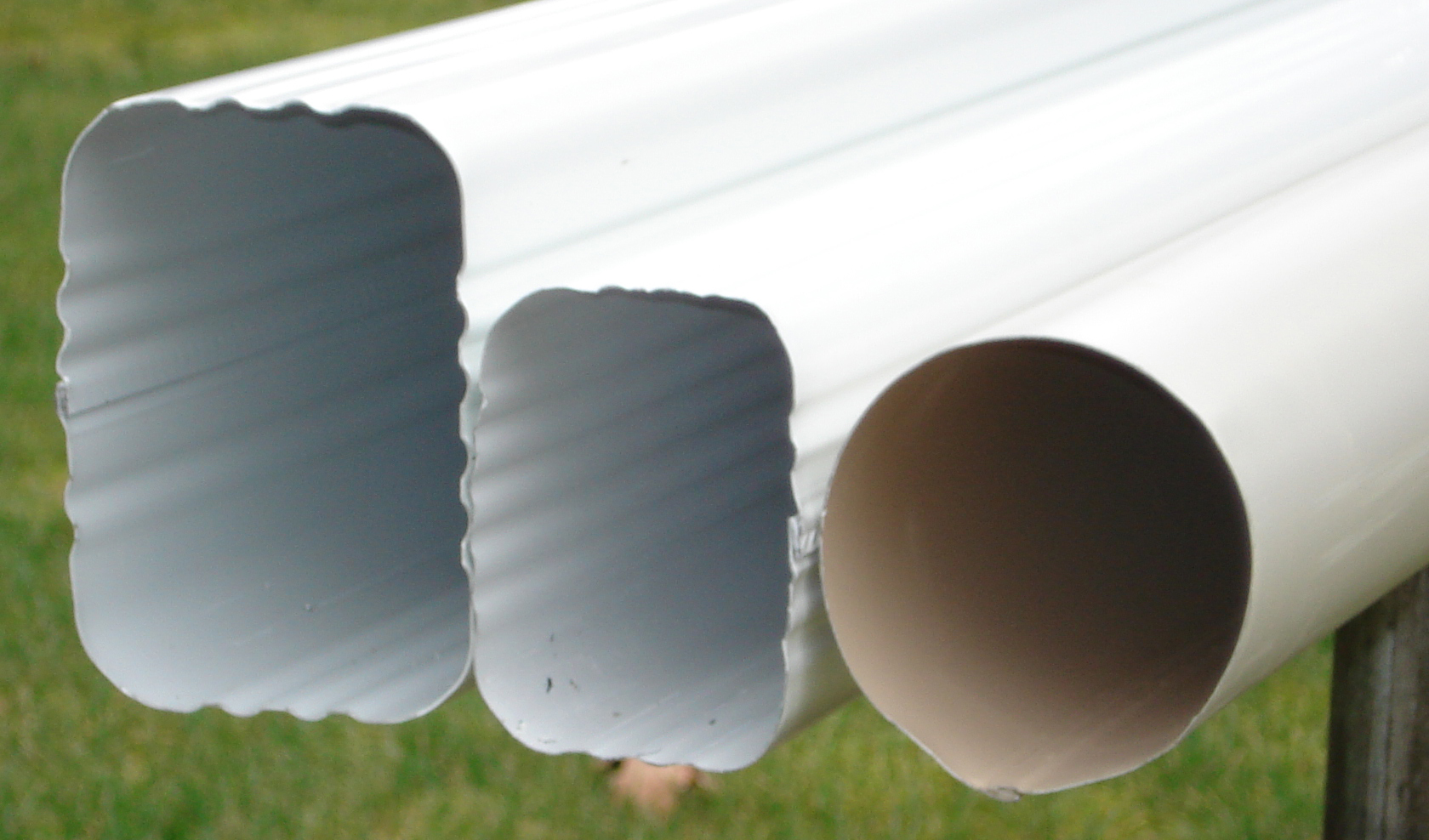

Profiles of Square Pipe

0.4-0.8mm Thickness Round Rain Downspout Roll Forming Machine/ Drain Pipe Metal Round Downspout Roll Forming Machine

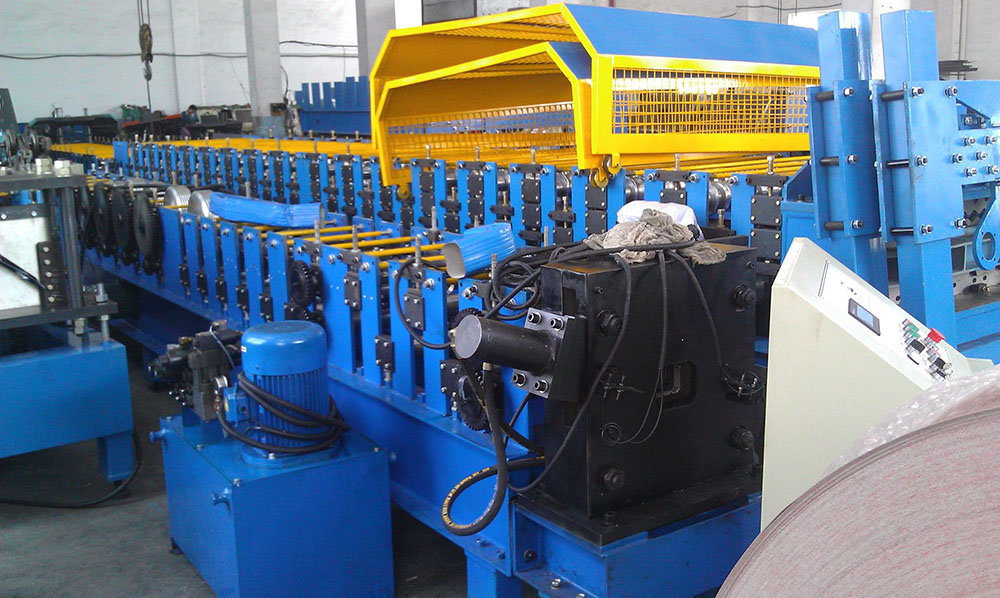

Photo of machine
