Fully Automatic 0.3-0.8mm Square Round Water Downspout Roll Forming Machine

Name: Fully Automatic 0308mm Square Round Water Downspout Roll Forming Machine
Brand: Sussman
Price: 1 USD

Buy cheap Fully Automatic 0.3-0.8mm Square Round Water Downspout Roll Forming Machine product

Brand Name : Sussman

Model Number : SM-RP

Certification : CCC, SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 10 sets per month

Delivery Time : 60 days

Packaging Details : Standard packing

Main motor power : 7.5Kkw

Hydraulic station power : 7.5Kw

Material thickness : 0.3-0.8mm

Material : colour coated steel , aluminum

Roller material : #45 forged steel, surface coated with chrome

Shaft material : #45 steel with heat treatment

Power supply : 380V 50HZ 3 Phase

Control system : PLC(imported Brand)

Contact Now

Fully Automatic 0.3-0.8mm Square Round Water Downspout Roll Forming Machine

Water Downspout machine technical parameter

Use	Downpipe
Production Capacity	8-12m/min
Place of Origin	China
Certification	ISO CE
Warranty	1 Year
Key Selling Points	Long Service Life
Rolling thinckness	0.3-0.8mm
Feeding width	300 mm 400mm 450mm Other
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor, Bearing, Pump, PLC
After-sales Service Provided	Engineers available to service machinery overseas
Roller material	45# Steel
Color	Customized
Control system	PLC

Main Components

Commodity & Description	Quantity
5T manual uncoiler	1 set
feed and guiding device	1 set
Main roll forming machine	1 set
Straighten device	1 set
Hydraulic cutting equipment	1 set
Output table	1 set
Main drive	1 set
Hydraulic system	1 set
Controlling system (including cabinet)	1 set
Downpipe elbow bending machine	1 set
Seaming machine	1 set

Machine Components

The Whole downpipe roll forming line comprised of 3T manual uncoiler, main drive, infeed guiding, roll forming machine, straighten device, cutting equipment, hydraulic system, electrical controlling system, out put table. Elbow and seaming machine

Uncoiling – Infeed Guiding– Roll forming – straighten – Hydraulic cutting – Run-out table-elbow-seaming

Profiles of Square Pipe

Fully Automatic 0.3-0.8mm Square Round Water Downspout Roll Forming Machine

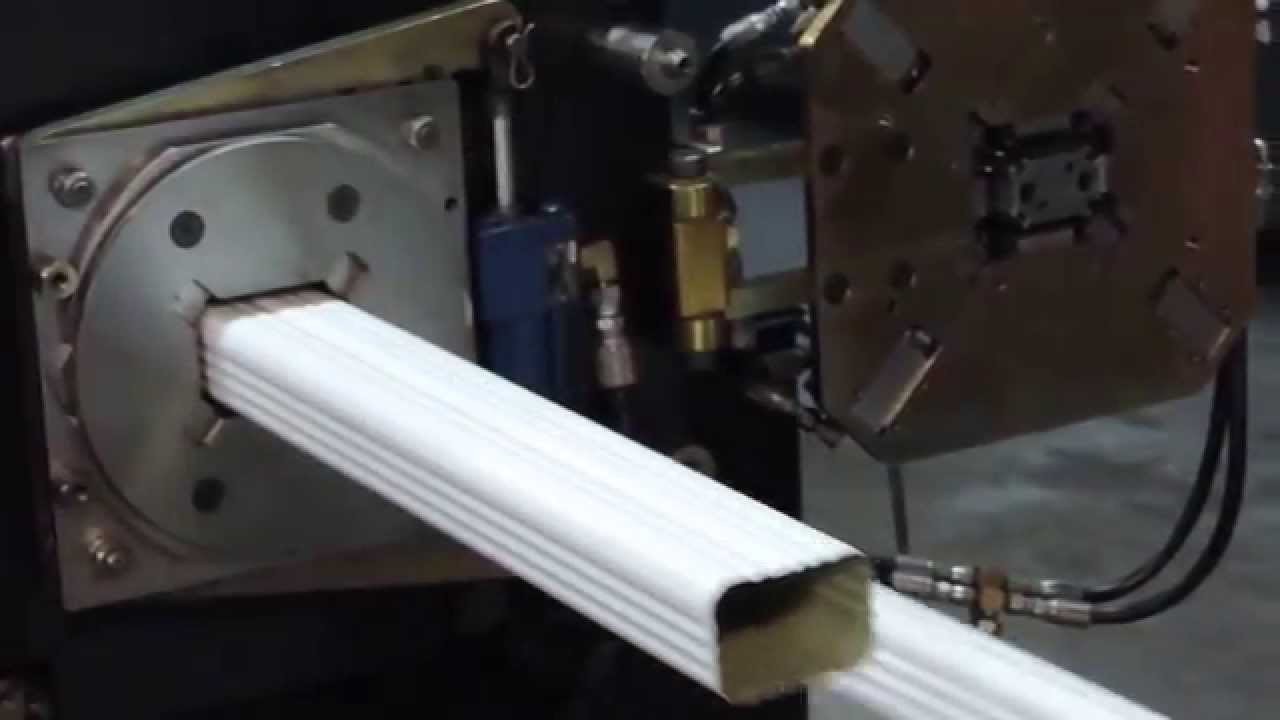

Photo of machine

Fully Automatic 0.3-0.8mm Square Round Water Downspout Roll Forming Machine
