Rock Wool Sandwich Panel Production Line Discontinuous Exterior Decorative

Name: Rock Wool Sandwich Panel Production Line Discontinuous Exterior Decorative
Brand: Sussman
Price: 1 USD

Buy cheap Rock Wool Sandwich Panel Production Line Discontinuous Exterior Decorative product

Brand Name : Sussman

Model Number : RW - SP

Certification : CE, ISO9001, SGS

Place of Origin : Hebei China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5 Sets / Month

Delivery Time : 80 days

Packaging Details : Film and Steel

Type : Rock Wool Sandwich Panel Line

Thickness : 0.5-1.2mm

Width Adjustable : 350-1250mm

Production Line Power : about 22KW

Contact Now

Discontinuous Exterior Decorative Wall Panels Rock Wool Sandwich Panel Production Line

Specification

Suitable for ceramic board, calcium silicate board, metal board, etc.
Suitable for polystyrene board, extruded plastic board, polyurethane foam board, rock wool board, etc.
1. Production speed of production line: 3-4pcs/min (about 6m finished products)
2. Product drawings are shown in the drawings signed by both parties
3. Production line covers an area of about 48m×3m wide×1.8m high
4. Production line labor: 3 persons
5 production line power: about 60KW
6 production line environment working environment requirements
1) Ambient temperature: 0℃～50℃, relative humidity: ≤90% (25℃)
2) Three-phase AC power supply: 380V (±10%), 50HZ
3) Compressed air: 0.5～0.6Mpa

Process

Automatic Decoiler→feeding and heating platform→gluing part→composite material feeding part→preheating platform→laminated lamination→finished product discharging platform→automatic palletizer

Machine List

NO.	Parts	Quanity (set)
1	Decoiler	2
2	Leveler	1
3	Punching device (6 sets of punching dies)	1
4	Roll forming machine	1
5	Bending device	1
6	Out table	1
7	Preheating device	1
8	Automatic spray device (3meters)	1
9	Feeding device for the rockwool	1
10	Preheating device(2.5 meters)	1
11	Assembling machine 1250mm&22meters	1
12	Output table	1
13	Control box	1
14	Auto stacker	1

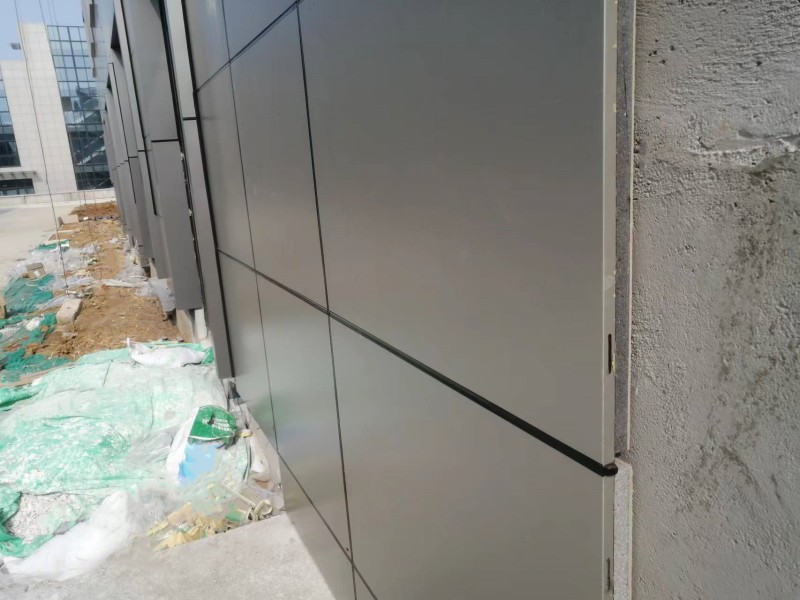

Application

Rock Wool Sandwich Panel Production Line Discontinuous Exterior Decorative
