CE Certificate 0-30 Meters/min Deck Floor Roll Forming Machine With Servo Following Cutting
The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.
Floor Deck Making Machine Technical Parameter
| Item NO |
Description
| UnitType | RF-DF |
| 1 | Steel Thickness | mm | 0.8-1.5mm |
| 2 | Forming Speed | m/min | 0-20m/min |
| 3 | Roller stands | stand | 28-30 |
| 4 | Roller Material | | Gcr15 chromed
HRC55-60 |
| 5 | Shaft diameter | | Ф90mm |
| 6 | Main Motor Power | kw | 11*2kw |
| 7 | Hydraulic cutting Power | kw | 5.5 |
| 8 | Hydraulic pressure | Mpa | 12 |
| 9 | Power Supply | | 220V, 60HZ,3 phase |
| 10 | Tolerance | mm | 1.5 |
| 11 | Material of cutting | | Cr12mov |
| 12 | Control system | | PLC with touch screen |
| 13 | DRIVE system | Chain | 1.6 inches |
Machine List
| No | Name | quantity |
| 1 | 5 ton passive de-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | PLC system | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Out tables | 2 units |
Working Flow of Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
Standard Profile Drawing of product
Machine Photo

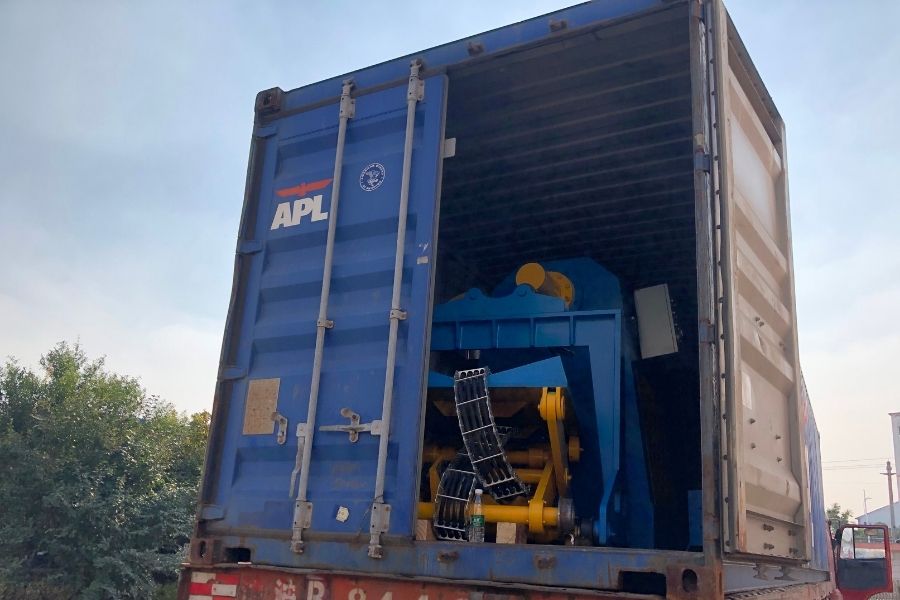

Loading Pictures
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc
