CE Certificate 0.3-0.8mm Color Steel Strip Snap Lock Roofing Sheet Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : Sussman

Model Number : RF-ST

Certification : CE, SGS, ISO

Place of Origin : Wuxi, China

MOQ : 1 set

Price : negotiable

Supply Ability : 10 sets/month

Delivery Time : 60 days after deposit

Packaging Details : Film and steel

Steel thickness : 0.3-0.8mm Colored and galvanized steel coil

Forming speed : 8-12m/min

Main shaft diameter : 7.5Kw

Effective Width : as profile

Control system : PLC with touch screen

Decoiler : 5000kgs

Roller numbers : 16 stations

Cutting blade material : cr12 with quenched treatment

Contact Now

CE Certificate 0.3-0.8mm Color Steel Strip Snap Lock Roofing Sheet Roll Forming Machine


1. Technical Parameter

NO.

Item

Specification



Material

Raw material

Galvanized steel or PPGI

Thickness

0.3-0.8 mm















Machine

Roller station

16 rollers

Shaft diameter

75 mm

Solid shaft material

High grade 45# steel with Cr12 mov coated,

quenching & tempering & treatment

Roller material hardness 30-40 HRC

Cr12

Machine size

About 6.5*1.2*1.3 m

Machine weight

About 5 tons

Machine color

As customer need

Working speed

8-12m/min





Cutter

Hardness

50-58 HRC

Cutting tolerance

± 1mm

Material

Cr12

Operate

Hydraulic cutting







Power

Driving way

Chain 1 inch

Main motor

7.5 KW

Pump motor for cutter

4 KW

Voltage

380V/50HZ, 3P or Customized as customer' request



Control system

PLC brand

Delta made in Taiwan

Screen

Touchable screen

Language

Chinese and English or add customer need language




Decoiler

Operation

Manual

Weight capacity

5 Tons



2. Machine List


5 T passive de-coiler

1 set

Feeding with guide

1 set

Main roll forming machine

1 set

Cutting machine

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

4Meters Passive Out table

2 units

Safety cover

1 unit

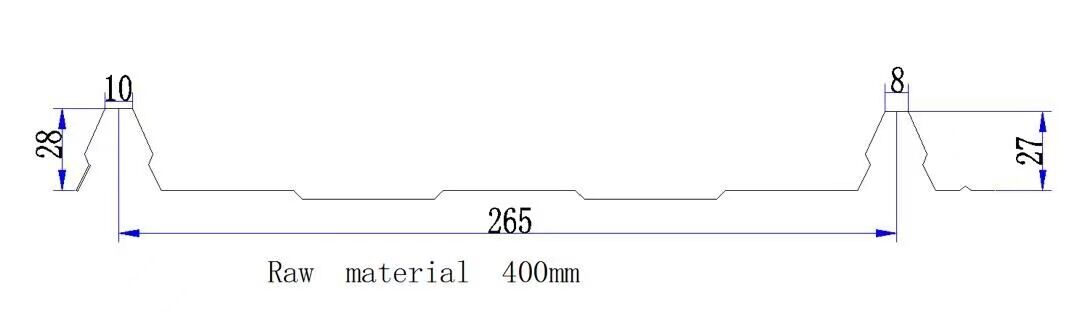

3. Profile Drawing

CE Certificate 0.3-0.8mm Color Steel Strip Snap Lock Roofing Sheet Roll Forming Machine

4. Application

This machine is used to form the pre-painted sheet/GI material to be the standing seam for various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.
CE Certificate 0.3-0.8mm Color Steel Strip Snap Lock Roofing Sheet Roll Forming Machine

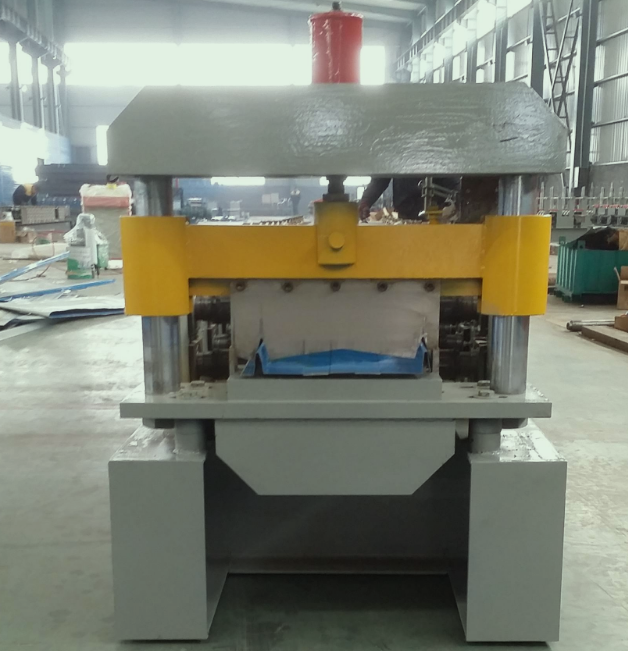

5. Machine photo


CE Certificate 0.3-0.8mm Color Steel Strip Snap Lock Roofing Sheet Roll Forming Machine

At last, we will take photos for customer when loading to container.
