Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Brand Name : Sussman Machinery

Model Number : SM-ST

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD17500-25500 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 sets per month

Delivery Time : 60-90 working days

Packaging Details : Plastic film

Raw material : Galvanized coils

Speed : 12-30m/min

Punching : optional

Machine size : 5000mm-600mm-700mm

Hydraulic station : 4kw

Cutting system : Hydraulic cutting

Warranty : 2 years warranty, lift time service

Control system : Delta or Siemens

Tooling material : Cr12 with heat treatment

Cutting material : Cr12mov

Contact Now



Technique data for High speed light weight Galvanized coils Stud track roll formimg machine with perforation system



Product and installation of the stud track profile



 Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Specification of the stud track machine



  Items Specifications Remarks
Material of coil Material Thickness 0.3-0.85mm galvanized steel
De-coiler Weight 3 ton hydraulic decoiler&coil car
Forming system Rolling Speed 10 m/min
embossing 1 set of rolls
Roller Stations About 13 stations forming
Roller Material Cr40 Steel with quenching
Shaft Material

45# Steel Diameter 75mm shaft




Maim Motor Power 5.5 kw
Hydraulic cutting Power 4 kw

Cutting

system

 Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Cutting blade 1 set of cutting blade
Electrical control system Electric Source

380V, 50HZ,3 phase




Control System PLC Delta
  Weight About 4 tons
  Way Of Drive 1 inch single chain
  Size of machine Length 5000mm* Width 600mm* Height 700m





Spare parts



4 meters simple out table



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation



Punching device



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation



3 ton passive decoiler

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

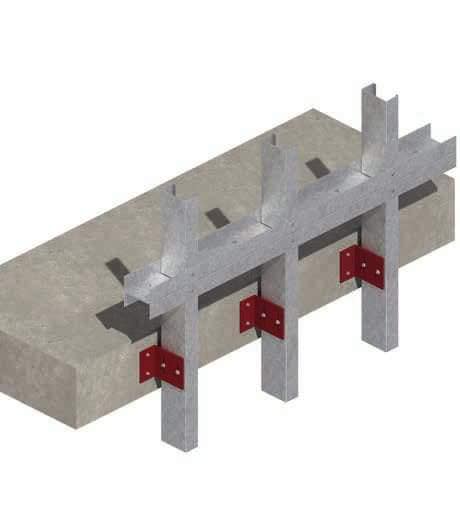

More installation system



Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

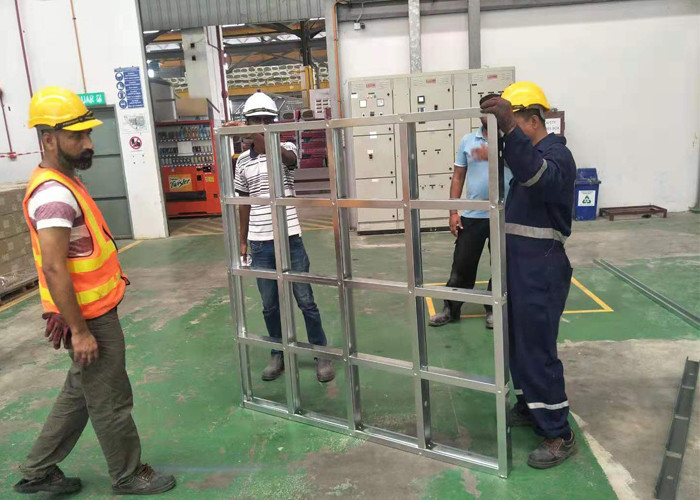

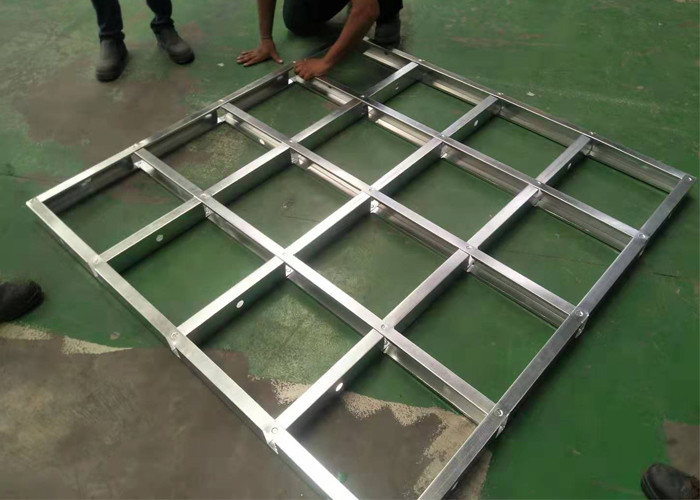

Wall frame

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Stud track with perforation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

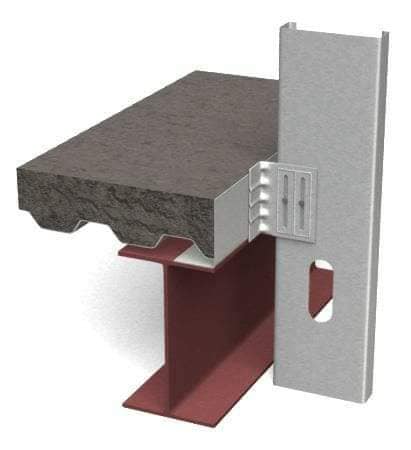

Installation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation

Wall installation

Light Weight Galvanized Coils Stud And Track Roll Forming Machine With Perforation
