18 Stations IBR Sheet And Corrugated Double Roll Forming Machine With 7.5Kw Main Motor

Name: 18 Stations IBR Sheet And Corrugated Double Roll Forming Machine With 75Kw Main Motor
Brand: SUSSMAN
Price: 18000 USD

Buy cheap 18 Stations IBR Sheet And Corrugated Double Roll Forming Machine With 7.5Kw Main Motor product

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : USD18000-33500/SET

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60-80 days

Packaging Details : Film and Steel

Name : 18 Stations IBR Sheet and Corrugated Double Roll Forming Machine With 7.5Kw Main Motor

Forming Speed : 8-12m/min

material thickness : 0.3-0.8mm color painted steels

Roller Stations : about 18 stations

Roller Material : 45# steel, coated with chrome

Power Supply : 380V, 50HZ,3 phase

Tolerance : ±1.5mm

Control system : PLC with touch screen

Shaft Material and DIA : 75mm,material is 45# forge steel, Chrome with quenching

Main Motor Power : 7.5kw

Way Of Drive : 1.2 inch single chain

Contact Now

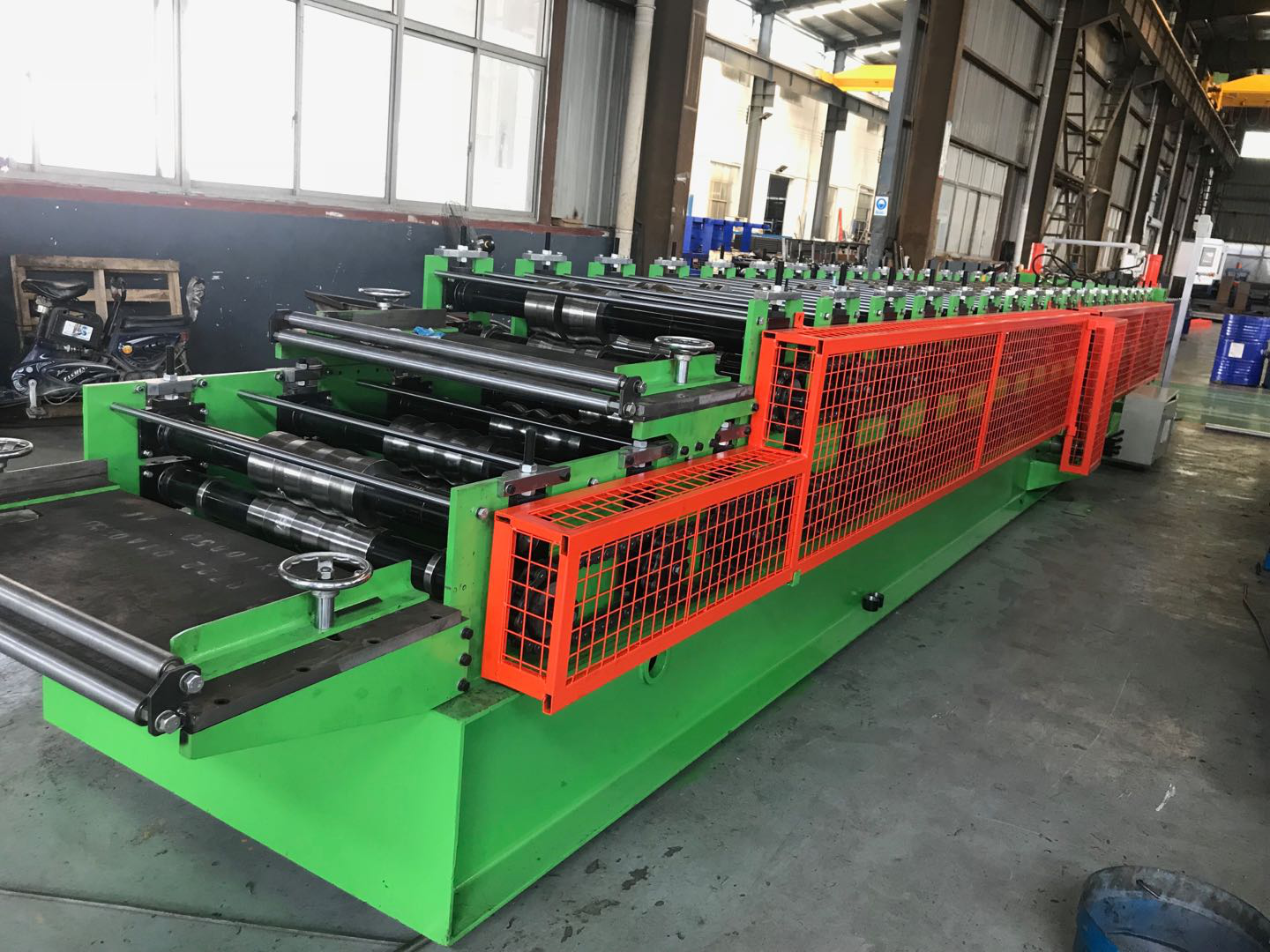

18 Stations IBR Sheet and Corrugated Double Roll Forming Machine With 7.5Kw Main Motor

Technical Data

Number	Items	UnitType	RF-DL
1	Steel Thickness	mm	0.3-0.8
2	Forming Speed	m/min	8-12
3	Roller stands	stand	18 stands bottom layer; 18stands top layer
4	Roller Material	mm	45# steel, coated with chrome
	Shaft material and diameter	mm	Ф75 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12 HRC60-62
11	Control system		PLC with touch screen
12	Machine net weight	T	12

Main Components

5 tons passive de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Out table	2 units

Working Flow of Roll Forming Machine

Uncoiling—Feeding with guide——Roll forming—Cutting—Products collecting

18 Stations IBR Sheet And Corrugated Double Roll Forming Machine With 7.5Kw Main Motor

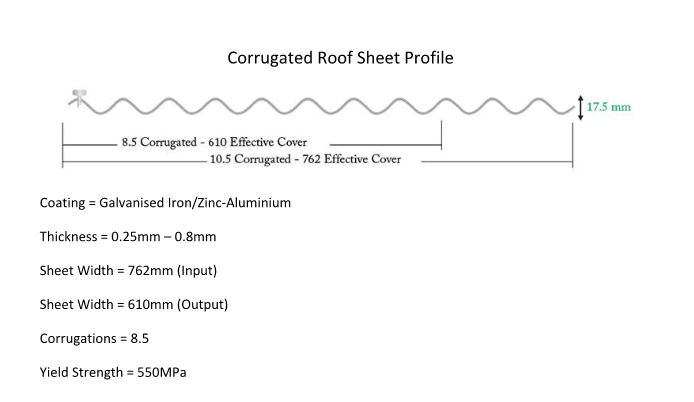

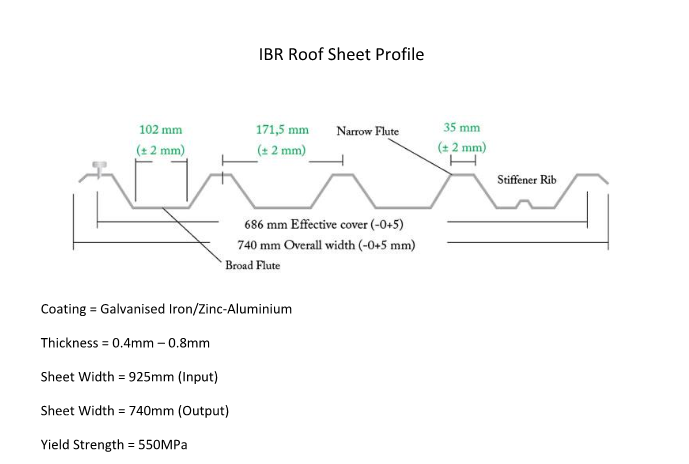

Profile of Product (Basis on customer’s requirement to design)

18 Stations IBR Sheet And Corrugated Double Roll Forming Machine With 7.5Kw Main Motor
