PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting

Name: PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting
Brand: Sussman
Price: 29500 USD

Buy cheap PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting product

Brand Name : Sussman

Model Number : SM-RM

Certification : SGS, ISO9001, CE

Place of Origin : Wuxi Jiangsu China

MOQ : 1 set

Price : USD29500-USD39500

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 60 days after deposit

Packaging Details : Standard packing

Material : 0.4-1.2MM PPGI GI

Forming speed : 8-12m/min

Forming stations : About 12 stations

Cutting method : hydraulic stop cutting

Transmission : 1 inch chain drive

Weight : 3T

Roller material : Gcr15 steel with quenching

Shaft diameter : 60mm

Tolerance : 1mm

Material of the principal axis : excellent steel No.45

Contact Now

PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting

Technical Parameter

Item	Technical data
Steel sheet thickness	0.4-1.2mm galvanized steel
Hydraulic power	4kw
Transmission way	1 inch chain
Capacity of Decoiler	3 Ton passive
Forming Speed	8-12m/min
Roller Groups	about 12 main rollers
Roller Material	45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62
Roller Diameter	60mm
Principal Axis	45# high grade steel with quenching treatment
Main Motor Power	5.5 KW
Dimension	About 5.50.81.200m
Weight	3 Tons

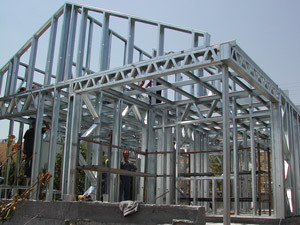

Application

1. furring is commonly used for purlins in exterior applications
2. Used to level uneven surfaces

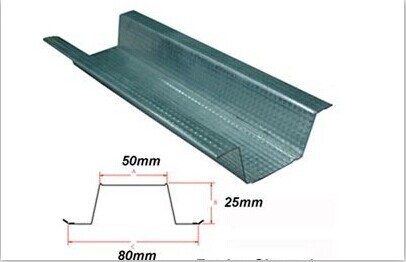

3. Furring channel is used on masonry walls and ceiling assemblies
4. Furring channel is used in conjunction with U-channel, hanger wire, and furring channel clips to form rigid suspended ceiling framework

Main Components

Machine name	Quantity
3 tons passive Decoiler	1 set
Main roll forming machine	1 set
Hydraulic stop cutting device	1 set
4 meters finished tabels	1 ste
PLC control box system	1 set
Toll box	1 package

Working Flow

De-coiler—→feedingwithguide—→roll forming —→hydraulic stop cutting—→ out tables

Machine Photo

PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting

Product Tags:

metal stud and track roll forming machine

metal stud forming machine

PLC Control Stud And Track Roll Forming Machine With Hydraulic Cutting Images
